100W Hi Fi Amplifier Ras100 Version 2
Before “the new Hifi Amplifier Mosfet RAS300 RAS100 and PCB drawings” article for the RAS-100 100W MOSFET amplifier PCB shared drawing sketch I changed I said there’s no difference, but in fact the V2 have in terms of usability... Electronics Projects, 100W Hi Fi Amplifier Ras100 Version 2 "audio amplifier circuits, transistor amplifier, " Date 2019/08/03

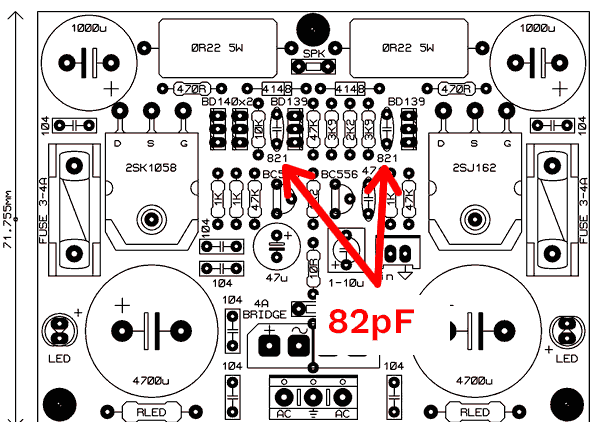

Before “the new Hifi Amplifier Mosfet RAS300 RAS100 and PCB drawings” article for the RAS-100 100W MOSFET amplifier PCB shared drawing sketch I changed I said there’s no difference, but in fact the V2 have in terms of usability and pleasing to the eye to have had the opportunity to study the differences in performing the circuit does not have a problem also went smoothly, if I find an opportunity running post video to add. Added Ares version 7.0 files.
100W Mosfet amplifier RAS100-V2 all files:
FILE DOWNLOAD LINK LIST (in TXT format): LINKS-21612.zip
