Power Integrations referans smps tasarımları

Sponsorlu Bağlantılar

Power Integrations smps kontol entegreleri ve tasarım programı hakkında bir yazım vardı (PI Expert Smps DC-DC AC-DC Tasarım Programı) firmanın tüm testlerini yaptığı uyguladığı bir kaç smps tasarım örneği ek olarak uygulama resimleri bulunmayan değişik tasarımlar tüm uygulamalarda  trafo nüve tel sarım bilgileri bulunmakta

Özellikle bazı smps devrelerinde bir çok detay var osiloskop ölçümlerinin yapılması ısıtma fırın içinde soğutucu testleri yerleşim vb. bir çok bilgi..

Not : Açıklamalar arasında ki “Peak” anlık aşırı yük üzerinde devrenin verebileceği güçtür

225 W (286 W Peak) Power Factor Corrected LLC Power Supply

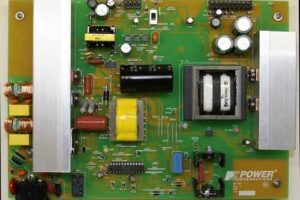

225-w-40-inch-lcd-tv-power-supply-using-plc810pg

HiperPLC (PLC810PG) Specification 90 VAC to 265 VAC Input 225 W (286 W Peak) Total Output Power

5 VSB at 0.5 Watt
5 V at 9.5 Watt
12 V at 48 Watt (60 W Peak)
24 V at 168 Watt (216 W Peak)
Application 40 Inch LCD TV

Summary and Features

• Frequency and Phase locked PFC and LLC for ripple cancellation in bulk capacitor for reduced ripple current reduced bulk capacitor and reduced EMI filter cost

• Integrated PFC and LLC controller
• Continuous mode PFC using small low-cost EE Sendust core and magnet wire
• Tight LLC duty cycle matching
• Tight LLC dead time control
• Brown out detection circuit
• >92% full load PFC efficiency at 90 VAC using conventional ultrafast rectifier
• >93% full load LLC efficiency

30 W DC-DC Converter with DPA424

30-w-dc-dc-converter-with-dpa424

Specification 36 Volt DC to 72 Volt DC Input 5 Volt @ 6 Amp Output
Application Telecom

Features

Very Low Component Count
High Efficiency
No current sense components
Integrated MOSFET designed for very low switching and gate drive losses
85% with low cost S.B.D. rectifier

DPA-Switch Integrates:
Accurate line OV and OV shutdown
Thermal protection
Overload and open loop fault protection
Regulation at zero load (cycle skipping)
400 kHz trimmed internal oscillator

No Heat Sink or Derating at up to 55 °C Tested Over Industrial Temperature Range (-40 °C to 85 °C) High Bandwidth (6 kHz)

PKS606YN 36 W Continuous, 72 W Peak SMPS Power Supply

reference-design-report-for-a-36-w-72-w-peak-power-supply

Specification 90 – 265 VAC Input, 12 V, 36 W Continuous (72 W Peak) Output
Application Variable Speed Motor Drive

• Replaces a two-stage linear power supply and chopper circuit with a simple single-stage design

• Eliminates the chopper circuits normally used to achieve variable-speed control of DC motors

• Motor speed is controllable by a small potentiometer or a 3.6 V to 10 V variable DC voltage

• Easily meets CISPR-22 / EN55022B limits with E-Shields and Frequency jittering feature

35 Watt SMPS Power Supply Using TOP 258PN

35-w-power-supply-using-top258pn

Specification 90 Volt AC to 265 Volt AC Input 5 Volt, 2.2 Amp and 12 Volt, 2 Amp Output
Application LCD Monitor

Summary and Features

• Low cost, low component count, high efficiency
• Delivers 35 W at 50 °C ambient without requiring an external heat sink
• Meets output cross regulation requirements without linear regulators
• Eco Smart meets requirements for low no load and standby power consumption
• 0.42 W output power for <1 W input • No load power consumption < 300 mWatt at 230 Volt AC • >82% full load efficiency

Integrated safety/reliability features:

• Accurate, auto-recovering, hysteretic thermal shutdown function maintains safe PCB temperatures under all conditions

• Auto restart protects against output short circuits and open feedback loops
• Output OVP protection configurable for latching or self recovering
• Input UV prevents power up  power down output glitches
• Meets EN 55022 and CISPR-22 Class-B conducted EMI with > 10 dBµV margin

19.7 Volt, 3.3 Amp Notebook Adapter

19volt-smps-notebook-computer-adaptor-top261ln

This engineering report describes a notebook adapter power supply demonstration board
employing the TOPS witch HX TOP 261LN. This power supply operates from a universal input and provides a 19.7 Volt, continuous 65 W output.

Summary and Features

• Low cost, low component count
• Very compact design in a 15.4 mm thin case
• Very low no-load input power (<270 mW at 230 VAC) • Meets Energy Star 2.0 Efficiency Requirements: >87% at 115 V / 60 Hz, and
230 V / 50 Hz, with very high efficiency in both standby and sleep modes
• Excellent transient load response
• Hysteretic thermal overload protection with automatic recovery
• Latching OVP with fast AC reset
• Meets limited power source requirements (<100 VA) with single point failure • Power Integrations eSIP low-profile package • Ultra-low profile transformer bobbin design (PI proprietary SLIMCORE™) • No potting required to meet thermal specifications • Meets radiated EMI with > – 6db margin

24 Volt Flyback 50watt (70watt peak) smps

24volt-smp-flyback-top258pn-boiler-power-supply

The isolated fl yback power supply shown in Figure 1 utilizes a TOP 258PN. The high effi ciency of this design allows for operation at a high ambient temperature (65° C) without the need for any external heatsinking.

16Watt 16Volt Audio Amplifier SMPS Power Supply TOP245P

16watt-16volt-audio-amplifier-smps-power-supply

• No heatsinks required!
• 77% efficiency (min), at 85 VAC input/35 W output
• Low no-load input power: < 0.7 W at 230 VAC input • Low component count: 37, excluding I/O connectors • Stable operation with or without 10,000 μF output buffer capacitor • Robust transformer design enables 35 W peak power • Meets CISPR22B EMI with >10 dB of margin
• Ideal for both class AB and class D audio amplifiers, 6 channel Dolby Digital with 6 ohm speakers

12 Volt SMPS Audio Amplifier Power Supply

12-volt-smps-audio-amplifier-power-supply

Application : Audio
Device : PKS606PN
Power Input Voltage : 90v 265 VAC
Output Voltage : 20W, 43W peak 12V
Topology : Flyback

Yazıda bulunan örnek smps devreleri : Power Integrations referans smps tasarımları

Dosya indirme LINK listesi (HTML formatında) link-6757.zip şifre-pass: 320volt.com

diğer örnekler entegre datashet dosyaları smps uygulama notları için aşağıdaki sayfaları ziyaret ediniz

Reference Design Kits
Design Examples
Application Notes
